Display several 3D objects at the same time in augmented reality
In short
To place several products side by side in the same room, bring them together in a group, then open that group in the Visuality Android app with its PIN code or its direct link. The web viewer, for its part, displays a group's objects one at a time, with a selector to switch between them.
Prerequisites
- A Visuality account with an active subscription or an ongoing free trial.
- The objects you want to present, already imported into your library.
- An Android 8.0 or later smartphone or tablet, with the Visuality app installed from Google Play.
Steps: build a scene with several objects

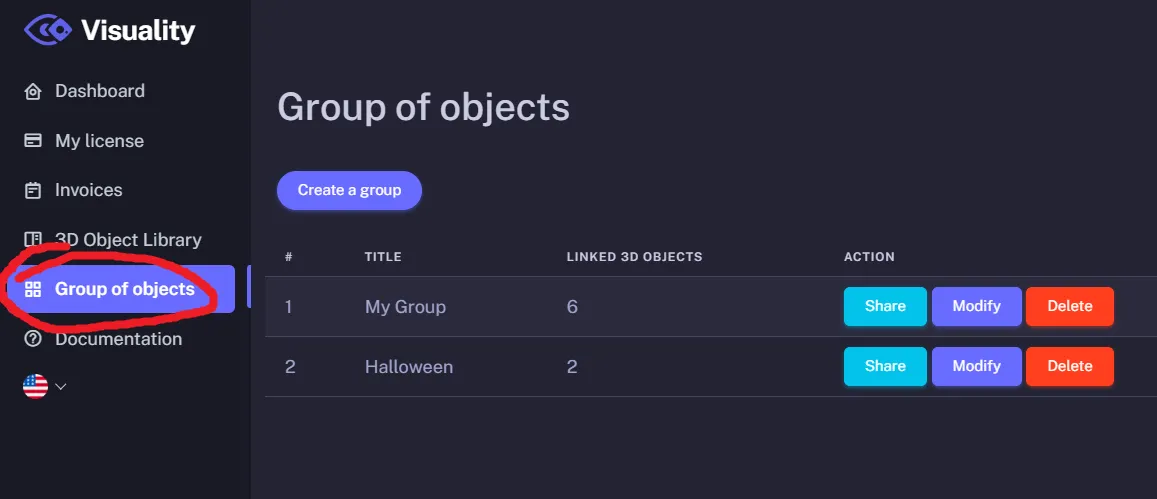

- Go to Group of objects and click Create a group.

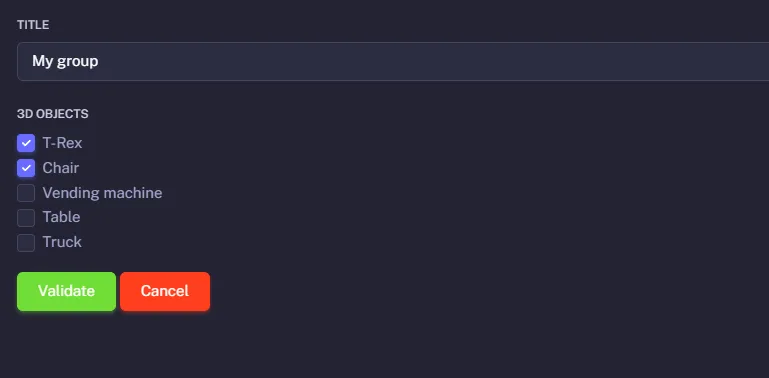

- Enter a Title, select the objects to bring together, then click Validate.

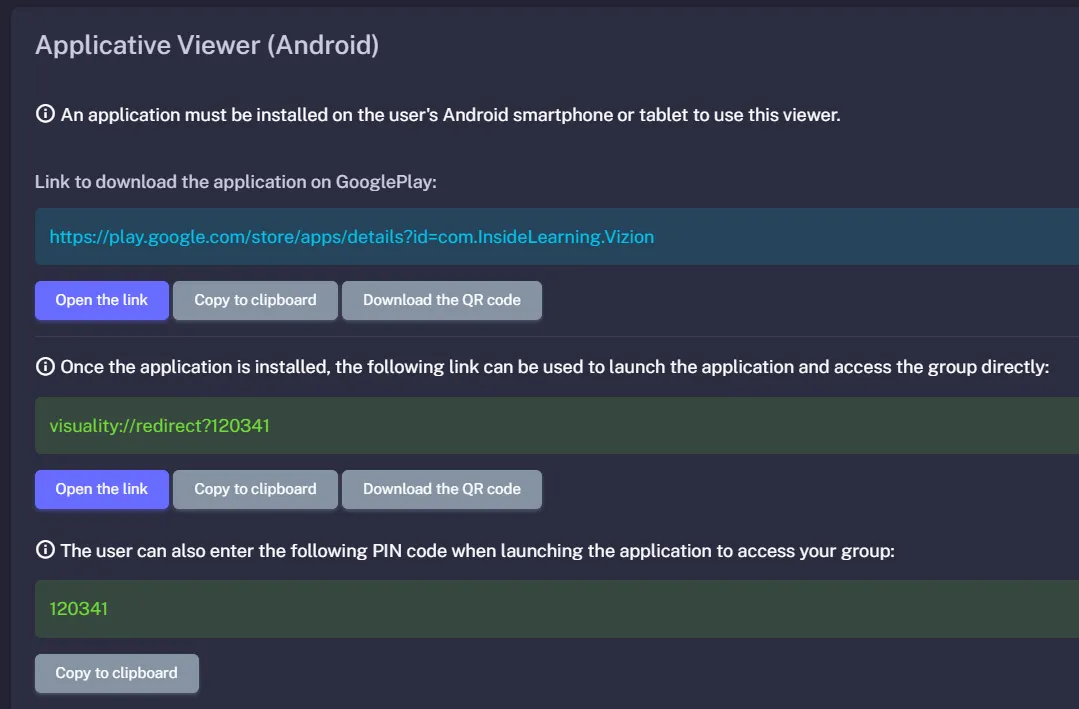

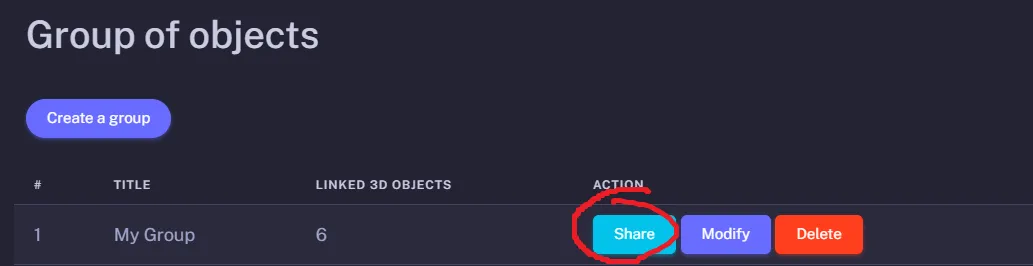

- Click Share next to the group and find the Applicative Viewer (Android) section: it contains the download link, the direct link, its QR code and the group's PIN code.
- On the Android device, launch the app and enter the PIN code, or open the direct link.
- Choose an object from the list and place it, then repeat with the next ones: the objects already placed stay in the scene.
Good to know and limitations
- The web viewer (link, QR code, iframe) only displays one object at a time: the group gives access to all products through a selector, without simultaneous placement.
- There is no Visuality app for iPhone and iPad: on these devices, AR Quick Look displays one object at a time.
- Once opened in the app, the group remains available offline, provided it has been accessed within the last 30 days.
- Several heavy objects displayed together put more strain on the phone: test your scene on the device you will use for demos.
Frequently asked questions
No. On iPhone and iPad, augmented reality runs in AR Quick Look, which displays one object at a time. Placing several objects simultaneously is only possible in the Visuality Android app; on iPhone, customers browse the group object by object.
No. A group's PIN code gives access to all the objects it contains. Your sales reps only have one code to enter in the app to get the whole selection.
Yes, in the Android app, if the group has been opened with a connection within the last 30 days. Open it once before your meeting or trade show to have it available offline.
Any questions? Feel free to contact us by email at contact@visuality.fr or by phone at 05 35 54 20 41!
